PRO-SCALE PERFORMANCE
MEANS ALL LIMITS ARE OFF!
MEANS ALL LIMITS ARE OFF!
Includes Traxxas Stability Management (TSM) System,
Velineon VXL-6s Brushless Power System,
TQi 2.4Ghz Radio, and Amazing Replica Detail!

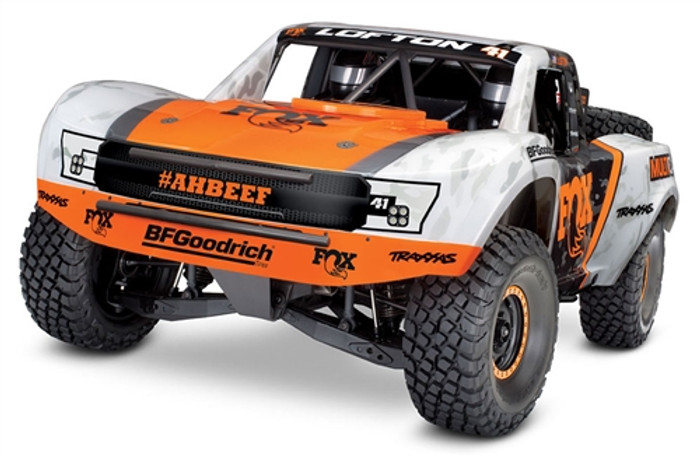

Traxxas never stops pushing for perfection. With the UDR, they just might have found it! The
Unlimited Desert Racer introduces Pro-Scale, a new Traxxas innovation that captures true-scale realism and combines it with extreme 6s LiPo power and 50+ mph performance. The Traxxas UDR faithfully captures the look and feel of Trophy Trucks and Unlimited Trick Trucks as they charge hard across the desert at full speed.Velineon VXL-6s Brushless Power System,
TQi 2.4Ghz Radio, and Amazing Replica Detail!
The Unlimited Desert Racer is engineered on an authentic, true-to-scale 4-wheel drive desert race truck chassis. The 4-link solid rear axle design provides huge suspension travel with authentic driving dynamics. From the cantilever sway bars to the 8 GTR shocks, Traxxas has accurately reproduced a true unlimited desert race chassis in both form and function.
This 50+ mph Racer delivers its pro-level performance with brutal 6s power. The VXL-6s ESC combines massive power handling with high-tech telemetry features. An ultra-tough drivetrain harnesses the extreme power to make it easy to control and fun to drive. And, Traxxas includes the Traxxas Stability Management system (TSM) to keep you in control of all that power.
- VXL-6s Waterproof Electronic Speed Control
- Velineon 2200KV Brushless Motor
- Up to 50+ MPH with two 3s LiPo Batteries
- Traxxas Stability Management (TSM)
- TQi 2.4GHz High Output Radio System
- Large Pro-Scale Body with Highly Detailed Replica Parts
- Drivetrain
- Steel CV driveshafts (front) with 6mm stub axles
- Steel straight axle (rear)
- Oil-filled limited slip front differential
- Locked steel spool (rear)
- Heavy-duty splined front driveshaft
- Fixed-length steel rear driveshaft
- Chassis
- Composite inverted tub design
- Tough skid plates protect critical components
- Fully integrated tube frame for scale appearance and added rigidity
- Reinforced bumpers to absorb impacts
- ESC battery plugs hard mounted to chassis
- Innovative Battery Compartment
- Accommodates single 4-cell LiPo or dual 2-cell or 3-cell LiPo batteries
- Opens from underneath without removing body
- Fixed oversized battery strap locks batteries securely into place
- Separate skid plate to protect batteries
- Suspension
- Provides scale looks and authentic off-road driving dynamics
- Tough independent double-wishbone front suspension with captured rod ends
- Triangulated 4-link rear suspension with solid rear axle (patent pending)
- Tough composite trailing arms
- Steel upper links with 3 optional positions for suspension tuning
- Eight long-travel aluminum GTR shocks; four with springs and adjustable ride height collars
- Realistic and functional front and rear sway bars
- Detailed functional limit straps on rear axle
- Steering
- Chassis mounted #2075X metal-gear servo
- Dual bellcrank design with bearings and integrated servo saver
- Solid non-adjustable steering links for rugged durability
- Transmission
- All-steel gear direct drive transmission
- Torque-Biasing Center Drive
- Removes as a single piece for easy maintenance
- Fixed-pin gear mesh system
- Wheels and Tires
- Replica BFGoodrich® KR3 off-road tires
- Beadlock-style 17mm dual-diameter wheels
- Sealed Ball Bearings
- Hex Hardware with Rust-Resistant Black Oxide Coating
- Length: 27.32 inches (694mm)
- Front Track: 13.57 inches (345mm)
- Rear Track: 13.57 inches (345mm)
- Ground Clearance: 2.27 inches (58mm)
- Weight: 13.4lb (6.1kg)
- Height (ride): 10.29 inches (261mm)
- Wheelbase: 16.53 inches (420mm)
- Tires (pre-glued): 134mm x 57mm BFGoodrich® KR3 replicas
- Wheels: Dual diameter 40mm x 56/81mm
- Speed Control: Velineon VXL-6s
- Motor (electric): 2200KV
- Transmission: Direct-drive with Torque-Biasing Center Drive
- Overall Drive Ratio: 17.89:1
- Chassis Structure/Material: Inverted Composite Tub
- Brake Type: Electronic
- Drive System: Shaft-Driven 4WD
- Steering: Dual Bellcranks with Ball Bearings
- Radio System: TQi 2-channel transmitter with 6533 TSM receiver
- Servo: 2075X Metal Gear
- Top Speed: 4s LiPo 30+ mph, 6s LiPo 50+ mph
- Skill Level: 5
- Battery Tray: 181mm x 46mm x 56mm
- REQUIRES:
- A single 4s LiPo battery; or dual 2s LiPo batteries; or dual 3s LiPo batteries
- LiPo Balance Charger
- (4) AA for Transmitter
- Traxxas LiPo Batteries with iD tech (1 or 2 required depending on voltage)
- iD Battery Charger (1 required)
- Alkaline Batteries for Transmitter (4 required)
