Savox SH-0261MG Super Torque Metal Gear Micro Digital Servo

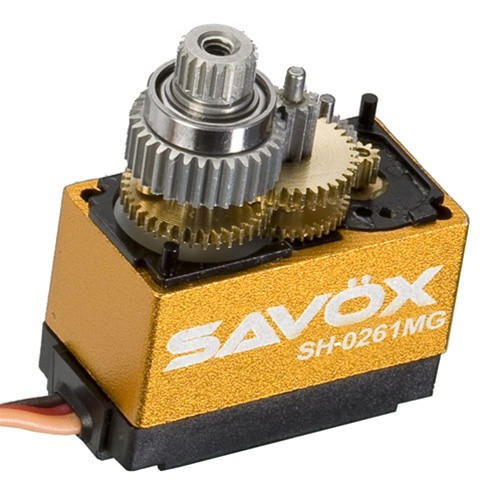

This is the Savox SH-0261MG Super Torque Metal Gear Micro Digital Servo.

• Over-spec refined design out performs ordinary micro size servo.
• The metal case design looks awesome and allows for cooler and smoother operating temps.
• Metal gears form a solid framework for precise control and operation.
• Strict production and quality control of plastic components.
• Our servos are totally green – from materials to production, these servos are environmentally friendly.
• Ideal for 250/450 class heli's and park flyer airplanes.

• Dimensions(mm): 22.8X12.0X25.4
• Weight(g): 14.0
• Speed(@4.8V sec/60): .13
• Torque(@4.8V oz-in): 25.0
• Speed(@6.0V sec/60): .10
• Torque(@6.0V oz-in): 30.6
• Gear: Metal
• Bearing: 1BB
• Case: Aluminum
• Running current (at no load): 60 mA @ 4.8V
• Running current (at no load): 80 mA @ 6.0V
• Stall current (at locked): 550 mA @ 4.8V
• Stall current (at locked): 700 mA @ 6.0V
• Idle current (at stopped): 5 mA @ 4.8V
• Idle current (at stopped): 5 mA @ 6.0V
• Limit angle: 220°±10°
• Connector wire gauge: #26 AWG
• Connector wire length: 250 ±5 mm
• Horn gear spline: 21T
• Control system: Pulse width modification
• Amplifier type: Digital Controller
• Operating Travel: 90° (when 1000→2000 μsec)
• Neutral position: 1500 μsec
• Dead band width: 5 μsec
• Rotating direction: Clockwise (when 1500→2000 μsec)
• Pulse width range: 700→2300 μsec
• Maximum travel: Approx 150° (when 700→2300 μsec)
